Challenge RMF’s Patty Stacking System
RMF Industrial Patty Stacking System
RMF revolutionized the patty packing industry nearly 50 years ago with the introduction of the first RMF Industrial Patty Stacker. Since then, our unrivaled expertise in patty stacking has garnered global acclaim, with numerous successful installations worldwide. Food processors have achieved remarkable reductions in labor costs and significant increases in efficiency employing RMF Patty Stackers.
While RMF Patty Stackers are widely recognized, it is important to note that they are just one integral component of our comprehensive patty producing systems, which are engineered and manufactured with meticulous attention to detail.

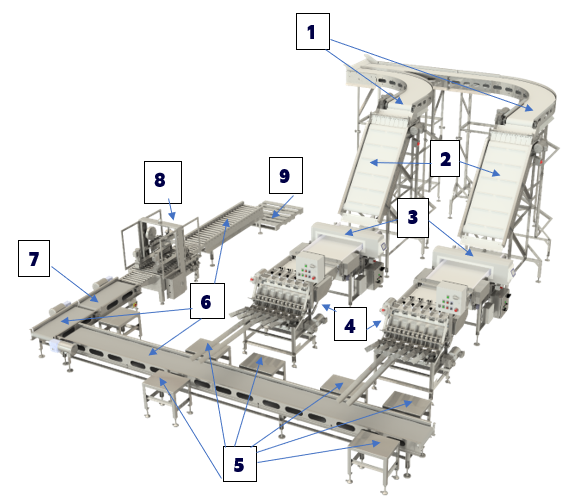

The system pictured below provides an overview of a typical RMF Custom Patty Stacking System. RMF designs system to meet packers’ unique specifications and requirements. As a testament to our commitment to quality, RMF constructs system with heavy duty components, ensuring both reliability and ease of sanitation.
Patty Transport Conveyor
These conveyors seamlessly move patties from the freezer to decline conveyors, facilitating automatic transfer to the subsequent stages of the system and ensuring a continuous and efficient product flow.
2. Patty Decline Conveyor
Decline conveyors smoothly lower the product from the elevated spiral freezer to the patty stackers’ operating level. Cleats and flaps assist in organizing patties for stacking.
3. Metal Detector Conveyor
RMF metal detector conveyors help ensure contaminant free product. They employ either an integrated reject mechanism, or can trigger an automatic reject at the patty stacker’s infeed belt.
4. Patty Stacker
RMF customizes each patty stacker to match the precise specifications of your products. The infeed conveyor uniformly distributes patties across the patty stacker’s width, aligning them with the stacker’s augers. Auger speed is infinitely variable within a particular range. The augers stack patties into the stacker’s troughs where they can be packed off into boxes or slid off the trough ends into sleeves or bags.
5. Packing Stations
To streamline the packaging process, RMF patty packing systems incorporate packing stations, where operators efficiently package the products as they come off the patty stacker.
6. Full Box Transfer Conveyors
Designed to be robust and reliable, full box transfer conveyors move boxed and/or bagged product to final packaging.
7. Check Weigher
RMF upholds strict quality control standards by integrating check weighers into our systems to ensure consistent product weights and guarantee regulatory compliance.
8. Box Taper
Depending on the specific requirements of our customers, RMF offers automatic and manually operated box tapers and strappers.
9. Pallet

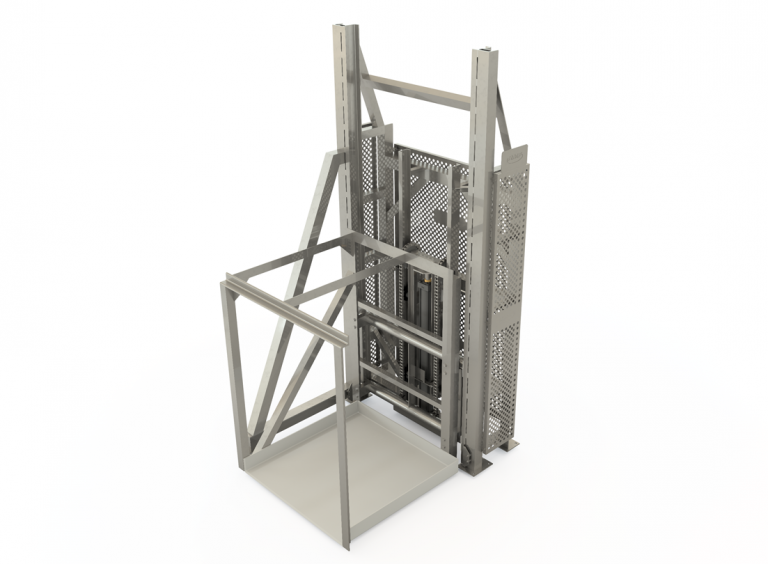

As the final stage of the process, the RMF Pallet Lift makes stacking finished boxes on to pallets ergonomically correct.
Original Article by Challenge RMF, please visit https://rmfworks.com/ or contact ITD for more information.
